| Business Type | Manufacturer, Exporter, Supplier |
| Power | 220V |
| Country of Origin | India |
| Type | Gas Alarm System |
| Click to view more | |
Product Details

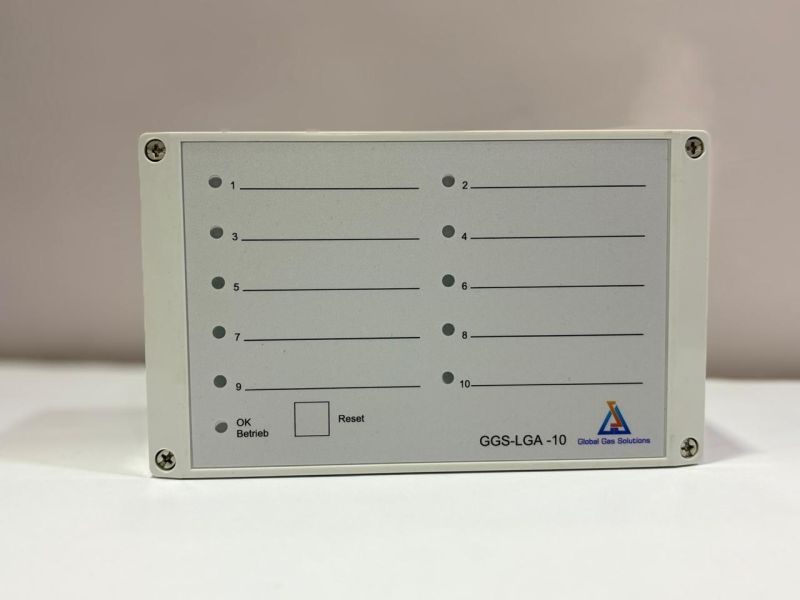

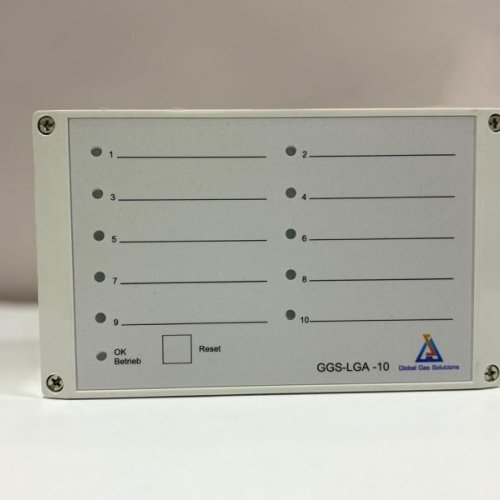

Low Gas Alarm System Using Pressure Transmitters
Real-Time Gas Pressure Monitoring with Visual & Audible Alerts
Product Description
Our Low Gas Alarm System utilizes high-precision pressure transmitters to continuously monitor gas pressure levels in real time. Equipped with dual-color LED indicators and an audible buzzer, the system provides clear alerts when gas pressure drops below preset thresholds. An external relay output allows seamless integration with alarms or control systems, ensuring enhanced safety and rapid response.
Key Features
✔ Dual-Color LED Indication
• Green LED (Normal): Indicates safe gas pressure range.
• Red LED (Alarm): Flashes with buzzer activation when pressure falls below threshold.
✔ Audible & Visual Alarms
• Built-in buzzer sounds upon alarm trigger.
• Acknowledgment button silences buzzer and changes flashing red LED to steady red until normal pressure is restored.
✔ External Relay Output
• Connects to external alarms, PLCs, or other control systems for expanded alert capabilities.
✔ Robust & Reliable
• Uses high-accuracy pressure transmitters for precise monitoring.
• Durable design suitable for harsh industrial environments.
How It Works
Normal Operation:
• Gas pressure within safe range → Green LED ON.
• Buzzer and relay inactive.
Low Gas Alarm Activation:
• Pressure drops below set level → Red LED flashes + buzzer sounds.
• External relay triggers (if connected).
Alarm Acknowledgment:
• Press acknowledgment button → buzzer stops, red LED stays steady.
Return to Normal:
• Pressure returns to safe range → Green LED ON, system resets automatically.
Applications
• Industrial Gas Monitoring
• Medical Gas Systems
• HVAC & Refrigeration Systems
• CNG/LPG Storage & Distribution
• Process Control in Manufacturing Plants
Why Choose Our System?
🔹 Instant Alerts for fast hazard detection.
🔹 Easy Installation with simple wiring.
🔹 Flexible Integration with external systems.
🔹 Low Maintenance, ensuring reliable long-term operation.
Ordering Information
Product Code: GGS-LGA-XX-PT
Where XX = Number of Channels
04 | 08 | 12 | 16
Technical Specification
| Parameter | Details |
| Input Supply | 220V / 110VAC, 50/60 Hz, 1 Amp max (customizable) |
| Pressure Range | 4 to 20 mA output |
| Output Relay | SPDT (1 NO + 1 NC) |
| Display | Dual-color LED (Green / Red) |
| Alarm Buzzer | Built-in, 85 dB |
| Enclosure Rating | IP65 (Dust & Water Resistant) |
