Fully Automatic Gas Autochangeover Panel

Seamless Gas Supply Without Manual Intervention

Product Overview

Our Fully Automatic Gas Autochangeover Panel provides intelligent, automatic gas switching to ensure uninterrupted gas supply across various applications. Designed for reliability and ease of use, this panel eliminates the need for manual intervention, making your operations safer and more efficient.

Built to withstand industrial environments, it supports LPG, CNG, LNG, and a wide range of industrial gases, providing peace of mind with continuous, fail-safe gas delivery.

Key Features

✅ Fully Automatic Switching

• Automatic detection and seamless transfer to secondary cylinders when primary gas supply is low.

✅ Real-Time Pressure Monitoring

• Continuous display of gas pressure to maintain optimal system performance.

✅ Integrated Alarm System

• Audible and visual alerts for low gas levels or system faults.

✅ Robust Construction

• Industrial-grade enclosure rated IP65 for dust and water resistance.

✅ Remote Monitoring

• IoT-enabled models available for remote diagnostics and control.

Technical Specifications

• Input Gas Types: LPG, CNG, LNG, Industrial Gases
• Operating Pressure: 0.5 – 20 bar (adjustable)
• Power Supply: 220V AC / 24V DC (Optional battery backup available)
• Switching Time: Under 5 seconds
• Enclosure Rating: IP65 (Dust & Water Resistant)
• Display: Digital LED / LCD Screen

Applications

• Industrial Heating Systems

• Commercial Kitchens & Hotels

• Hospitals & Laboratories

• CNG/LPG Stations

• Manufacturing Plants

Benefits Over Manual Changeover

• Eliminates Downtime — No manual cylinder replacement needed

• Enhanced Safety — Prevents gas leaks and pressure drops

• Cost-Efficient — Optimizes gas usage and reduces wastage

• Low Maintenance — Reliable operation with minimal upkeep

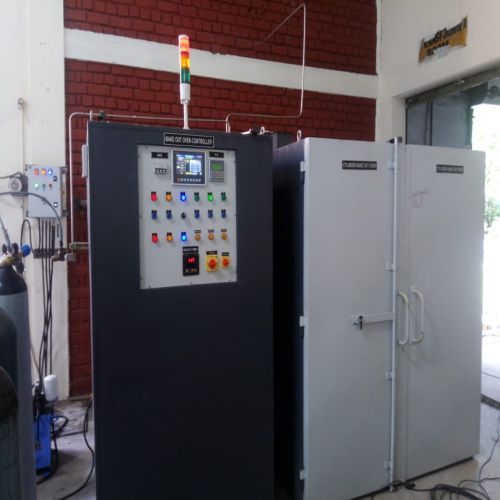

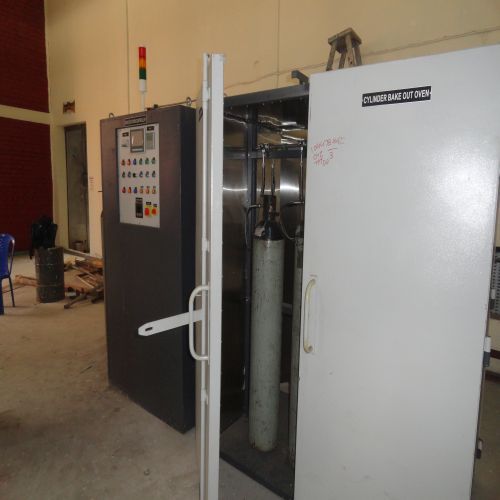

Vacuum Bake-Out Oven (VBO)

Automated Moisture & Contaminant Removal for High-Purity Gas Cylinders

Product Overview

Our Vacuum Bake-Out Oven (VBO) is a precision-engineered, fully automated system designed for the removal of moisture, oxygen, and hydrocarbons from gas cylinders. With programmable purge-vacuum-fill cycles and a dual-enclosure safety design, it is ideal for ultra-high-purity (UHP) and specialty gas applications.

Key Features

✔ Fully Automated Cycles – HMI-controlled programmable purge, vacuum, and fill sequences (1 to 10 cycles)

✔ Precise Temperature Control – Adjustable between 35°C to 120°C with delayed or immediate cycle start

✔ Dual Enclosure Design – Separate Process Control Unit & Oven Chamber (single enclosure option available)

✔ Advanced Monitoring & Safety – Over-temperature protection, visual/audible indicators, and PLC logic

✔ High-Performance Components – Vacuum pump, SS manifold, PTFE hoses, pressure sensors, and more

System Components

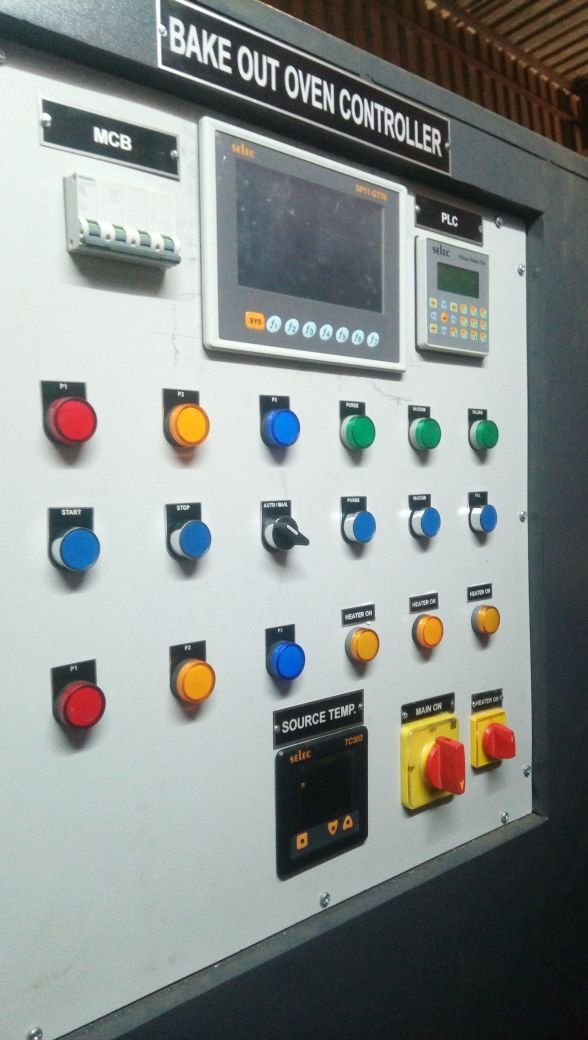

🔹 Process Control Unit

• High-Capacity Vacuum Pump (20/30/50 m³/hr)

• PLC & HMI Interface (Schneider / Siemens)

• Integrated Pressure Sensors & Signal Indicators

• Pneumatic/Bellows Valves (TKF)

• Pipe Heater with Blower

• MCB Protection, SMPS Power Supply

• Orbital-Welded Stainless Steel Manifold

• Safety Valves, Solenoid Valves

• Tower Light & Buzzer – Visual and audible process alerts

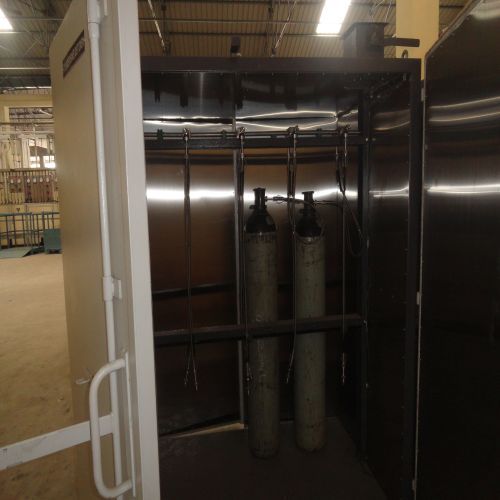

🔹 Heat Chamber

• 4/8/12/16/20/24-Cylinder Capacity with individual isolation valves

• SS Interior / Powder-Coated MS Exterior

• Glass Wool Insulation – Minimizes heat loss

• PTFE / SS-Braided Hoses for secure connections

• Air Circulation System with Temperature Sensors

Why Choose Our VBO System?

✅ Enhanced Cylinder Purity – Effectively eliminates contaminants
✅ Touchscreen PLC Control – Easy setup and real-time monitoring
✅ Explosion-Proof Safety Design – Built for hazardous gas applications
✅ Modular Configuration – Choose from single or dual-enclosure units
✅ Low Maintenance – Long-life components and durable construction

Ideal For:

• Semiconductor & Electronics Gas Preconditioning

• Specialty & Calibration Gas Preparation

• Pharmaceutical & Laboratory Gas Handling

• High-Purity Industrial Gas Packaging
